Advantage IV

Gold Series

GTx116e-PC

Airflow Measurement with Temperature & Alarm Capability

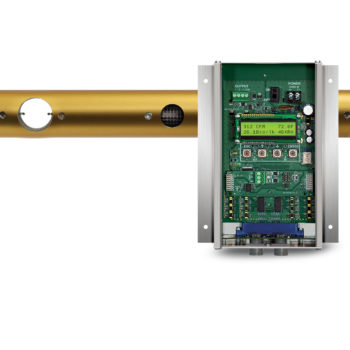

GTx116e-PC /H-System

Advantage IV

Gold Series

GTx116e-PC

Airflow and Temperature Measurement Device with Integral Relative Humidity Sensor (with /H option)

The GTx116e-PC is EBTRON’s top-of-the-line solution for accurate and repeatable measurement in ducts and plenums. Ruggedized RH sensor option (/H), onboard barometric pressure sensor and velocity-weighted temperature results in accurate relative humidity, enthalpy and dew point calculations. Ideal for supply, return and outdoor air intake applications on systems with an airside economizer. Bluetooth® low energy technology interface.

Thermal Dispersion Airflow Technology
Supports up to 16 Sensor Nodes
NIST-traceable Calibration
%-of-reading Airflow Accuracy
Airflow and Status Alarms

Velocity-weighted Temperature
Output %RH, Enthalpy or Dew Point¹
Three Mounting Styles
Remote Transmitter with LCD Display
3-year Warranty

¹ Requires /H option

GTx116e-PC Overview PDF

Overview
Specifications

Typical Applications

Outdoor Air Delivery Monitoring and Control
Differential Airflow Tracking for Building Pressurization Control
Airside Economizer Enthalpy Switchover Detection
Supply Air Humidity Monitoring and Control
DOAS Dew Point Monitoring

Benefits

Comply with ASHRAE Standards and Building Codes
Satisfy LEED Prerequisites and Credits
Provide Acceptable IAQ
Save Energy
Reduce Liability
Improve Economizer Performance

Product Highlights

Best Installed Accuracy
Low Airflow Capability
Volumetric or Mass Airflow Measurement
Long-term Stability
“Plug and Play” Operation
Intuitive User Interface
Waterproof Sensor Assembly
FEP Plenum Rated Cables

General

Probe and Sensor Node Configurations (max.)

2 probes x 8 sensor nodes/probe
4 probes x 4 sensor nodes/probe

Installed Airflow Accuracy

Ducts/Plenum: ±3% of reading

Non-ducted OA Intakes: better than or equal to ±5% of reading

PC Sensor Density

Refer to the PC sensor density table.

Sensor Node Averaging Method

Airflow: Independent, arithmetic average

Temperature: Independent, velocity weighted average

Listings and Compliance

UL: UL 60730-1; CAN/CSA-E60730-1-15

CE: Conforms (all shipments)

UKCA: UK shipments only

BACnet International: BTL Listed (GTC116e and GTM116e transmitters)

FCC: This device complies with Part 15 of the FCC rules

RoHS: This device is RoHS2 compliant

Environmental Limits

Temperature:

Probes: -20 to 160 ºF [-28.9 to 71.1 ºC]

Transmitter: -20 to 120 ºF [-28.9 to 48.9 ºC]

Humidity: (non-condensing)

Probes: 0 to 100%

Transmitter: 5 to 95%

Individual Sensing Nodes

Sensing Node Sensors

Self-heated sensor: Precision, hermetically sealed, bead-in-glass thermistor probe

Temperature sensor: Precision, hermetically sealed, bead-in-glass thermistor probe

Sensing Node Housing

Material: Glass-filled Polypropylene (Kynar® with /SS option)

Sensor Potting Materials: Waterproof marine epoxy

Sensing Node Internal Wiring

Type: Kynar® coated copper

Airflow Measurement

Accuracy: ±2% of reading to NIST-traceable airflow standards (includes transmitter uncertainty)

Calibrated Range: 0 to 5,000 fpm [25.4 m/s]

Calibration Points: 16

Temperature Measurement

Type: Velocity-weighted average

Accuracy: ±0.15⁰F [0.08 ⁰C] to NIST-traceable temperature standards (includes transmitter uncertainty)

Calibrated Range: -20 to 160 ⁰F [-28.9 to 71.1 ⁰C]

Optional Relative Humidity Sensor (/H Option)

Type: Ruggedized capacitive polymer RH sensor

Accuracy: @ 77 ⁰F [25 ⁰C]
20to80%RH:±2%RH
0to20and80to100%RH:±3.5%RH

Temperature Coefficient: 0.07%/⁰F [0.13%/⁰C]

Long Term Drift: 0.5% RH/year

Calculated Measurements: Velocity weighted relative humidity, velocity-weighted enthalpy and dew point using measured RH, velocity-weighted temperature and on-board barometric pressure sensor.

Sensor Probe Assembly

Tube

Material: Gold anodized 6063 aluminum (316 stainless steel with /SS option)

Mounting Brackets

Material: 304 stainless steel

Mounting Options & Standard Size Limits²

Insertion : 6 to 191 in. [152.4 to 4851 mm]

Stand-off: 6 to 190 in. [152.4 to 4826 mm]

Internal: 8 to 194 in. [203.2 to 4928 mm]

Note: The /H option is only available on probes >18 in.[457.2 mm]

Probe to Transmitter Cables

Type: FEP jacket, plenum rated CMP/CL2P, UL/cUL listed, -67 to 302 ⁰F [-55 to 150 ⁰C], UV tolerant

Standard Lengths: 10, 15, 20, 25, 30, 40 and 50 ft. [3.1, 4.6, 6.1, 7.6, 9.1, 12.2, and 15.2 m]

Connecting Plug: 13/16” [20.63 mm] nominal diameter with gold-plated connector pins

Transmitter

Power Requirement:

24 VAC (22.8 to 26.4 under load) @20V-A max.

Connector Receptacle Pins and PCB Connections:

Gold-plated receptacle pins, PCB interconnects, PCB edge fingers, and test points

User Interface:

2 line x16-character backlit LCD display and 4 button interface

B.A.S. Connectivity Options

All Transmitter: Three field selectable (0-5/0-10 VDC or 4-20mA), scalable and isolated analog output signals (AO1=airflow, AO2=temperature or alarm, AO3=%RH, enthalpy or dew point). when / H option is provided

GTA116e Transmitter: No additional connectivity to B.A.S.

GTC116e Transmitter: One additional field selectable (BACnet MS/TP or Modbus RTU) and isolated RS-485 network connection -Individual sensor node airflow rates and temperatures are available via the network

GTM116e Transmitter: One additional isolated Ethernet
(simultaneously supported BACnet Ethernet or BACnet IP, Modbus TCP and TCP/IP) network connection – Individual sensor node airflow rates and temperatures are available via the network

GTF116e Transmitter: One additional isolated Lonworks Free Topology network connection

GTU116e Transmitter: One additional USB connection for thumb drive data-logging of sensor node airflow rates and temperatures

Airflow Alarm

Type: Low and/or high user defined setpoint alarm

Tolerance: User defined % of setpoint

Delay: User defined

Zero Disable: Alarm can be disabled when the airflow rate falls below the low limit cutoff value (unoccupied periods)

Reset Method: Manual or automatic

Visual Indication: Yes, LCD display

Analog Signal Indication: Yes, on AO2 assignment

System Status Alarm

Type: Sensor diagnostic system trouble indication

Visual Indication: Yes, LCD display

Analog Signal Indication: Yes, on AO2 assignment

EB-Link Bluetooth Interface for Android® and iPhone®:

Display real-time airflow, velocity-weighted temperature, humidity, enthalpy, dew point, individual sensor node airflow/temperature data, settings and diagnostics.
