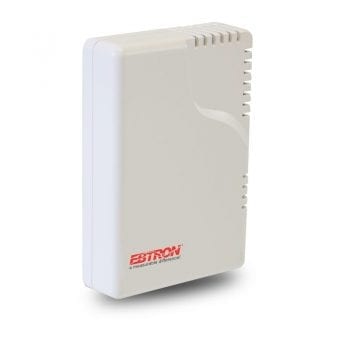

Wall-mounted RS-485 Combination Room Sensor with CO₂ and/or Relative Humidity/Temperature Capabilities
The IAQSENS family of wall mounted devices simplifies wiring and installation by providing up to three sensors over a single RS-485 connection. The device is available as a stand-alone CO₂ sensor, dual output RH/Temperature sensor or a combination of all three.
* When an Airflow Monitoring Device is provided.
Sensor Configurations
CO₂ only – IAQ-N100-W
RH and Temperature only – IAQ-N200-W
CO₂, RH and Temperature – IAQ-N300-W
Listings and Compliance
BACnet International: BTL Listed
FCC: This device complies with Part 15 of the FCC rules
RoHS: This device is RoHS2 compliant
Environmental Limits (Recommended)
Temperature: 32 to 122 ⁰F [0 to 50 °C]Humidity: 5 to 95%
CO₂ Sensor
Technology: Telaire 6613 Non Dispersive Infrared (NDIR)
Range: 0 to 2,000 ppm
Accuracy: 400 to 1,250 ppm ±30 ppm or 3% or reading, whichever is greater 1,250 to 2,000 ppm ±30 ppm
Temperature Dependence: 0.36% FS/°F [0.2% FS/°C]Stability: <2% of FS over life of sensor (15 year typical)
Calibration Interval: Not required
Response Time: <2 minutes for 90% step change typical
Temperature Sensor
Technology: Integral Bandgap PTAT
Range: 32 to 122 ⁰F [0 to 50 °C]Accuracy: ±1.08 ⁰F [0.6ºC] @77 ⁰F [25 °C]Resolution: 0.36 ⁰F [0.2 °C]
Relative Humidity Sensor
Technology: Planar Capacitive Polymer
Range: 0 to 100% RH
Accuracy:
±3% <20% RH
±2% 20% to 80% RH
±3% >80% RH
Resolution: 0.4% RH
Power Requirement
24 VAC (22.8 to 26.4 under load) @1.5V-A
Printed Circuit Boards
Electroless nickel immersion gold (ENIG) plated
User Interface
DIP switch
B.A.S. Connectivity Options
IAQ-N100, IAQ-N200, IAQ-N300 Transmitters: One field selectable (BACnet MS/TP or Modbus RTU) and non-isolated RS-485 network connection (provide individual 24 VAC transformers at each IAQ-Ny00 for applications requiring isolated RS-485).
Supported Baud Rates: 9.6, 19.2, 38.4 and 76.8 Kbaud
System Status Alarm
Type: Sensor diagnostic system trouble indication
Visual Indication: Yes, LED indication
Network Indication: Yes
Dimensions
4.56H x 3.25W x 1.09D in. [115.8 x 82.6 x 27.7 mm]
