Advantage IV
Gold Series


Airflow and Temperature Measurement Device with Alarm Capability

EBTRON offers a premium solution for precise and consistent measurement in outdoor air delivery monitoring and airflow tracking applications. The GTX116E-P+ features advanced airflow and temperature measurement, alarm capabilities, and the option to connect via BACnet or Modbus. With unparalleled functionality, it is an excellent choice for high-performance buildings.

Product Overview






Probe and Sensor Node Configurations (max.)
2 probes x 8 sensor nodes/probe
4 probes x 4 sensor nodes/probe

Installed Airflow Accuracy¹
Ducts/Plenum: ±3% of reading
Non-ducted OA Intakes: better than or equal to ±5% of reading

PC Sensor Density
Refer to the P+ sensor density table.

Sensor Node Averaging Method
Airflow: Independent, arithmetic average
Temperature: Independent, velocity weighted average

Listings and Compliance
UL: : UL-873 and CSA C22.2 No. 24
CE: Yes
UKCA: UK shipments only
BACnet International: BTL Listed (GTC116e and GTM116e transmitters)
FCC: This device complies with Part 15 of the FCC rules
RoHS: This device is RoHS2 compliant

Environmental Limits
Probes: -20 to 160 ºF [-28.9 to 71.1 ºC]Transmitter: -20 to 120 ºF [-28.9 to 48.9 ºC]Humidity: (non-condensing)
Probes: 0 to 100%
Transmitter: 5 to 95%


Sensing Node Sensors
Self-heated sensor: Precision, hermetically sealed, bead-in-glass thermistor probe
Temperature sensor: Precision, hermetically sealed, bead-in-glass thermistor probe

Sensing Node Housing
Material: Glass-filled Polypropylene (Kynar® with /SS option)

Sensor Potting Materials: Waterproof marine epoxy

Sensing Node Internal Wiring
Type: Kynar® coated copper

Airflow Measurement
Accuracy: ±2% of reading to NIST-traceable airflow standards (includes transmitter uncertainty)
Calibrated Range: 0 to 5,000 fpm [25.4 m/s]Calibration Points: 16

Temperature Measurement
Accuracy: ±0.15 ⁰F [0.08 ⁰C] to NIST-traceable temperature standards (includes transmitter uncertainty)
Calibrated Range: -20 to 160 ⁰F [-28.9 to 71.1 ⁰C]Calibrated Points: 3


Material: Gold anodized 6063 aluminum (316 stainless steel with /SS option)

Mounting Brackets
Material: 304 stainless steel

Mounting Options & Size Limit¹

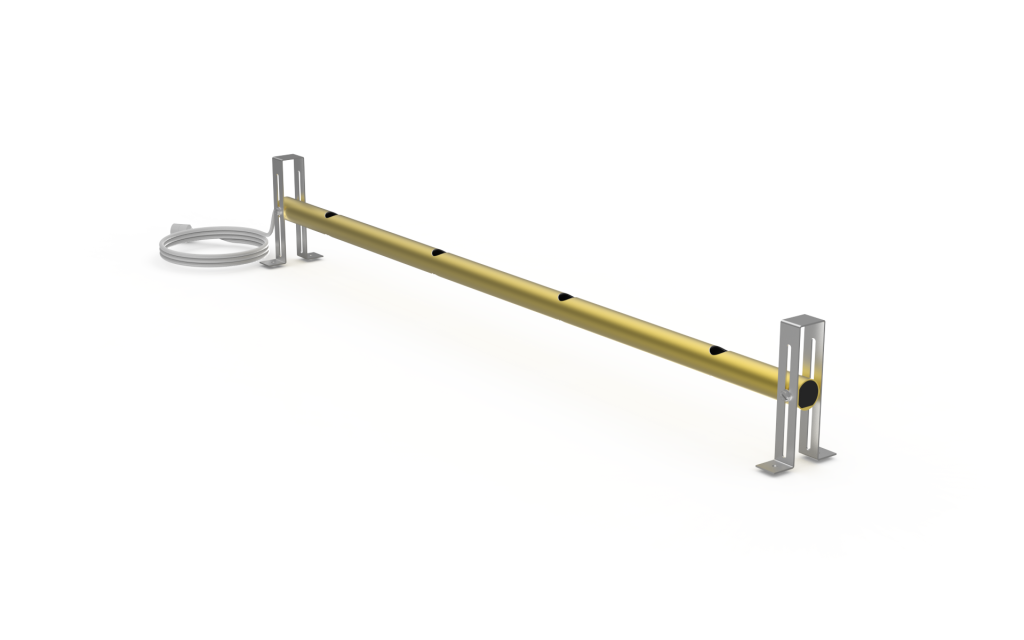

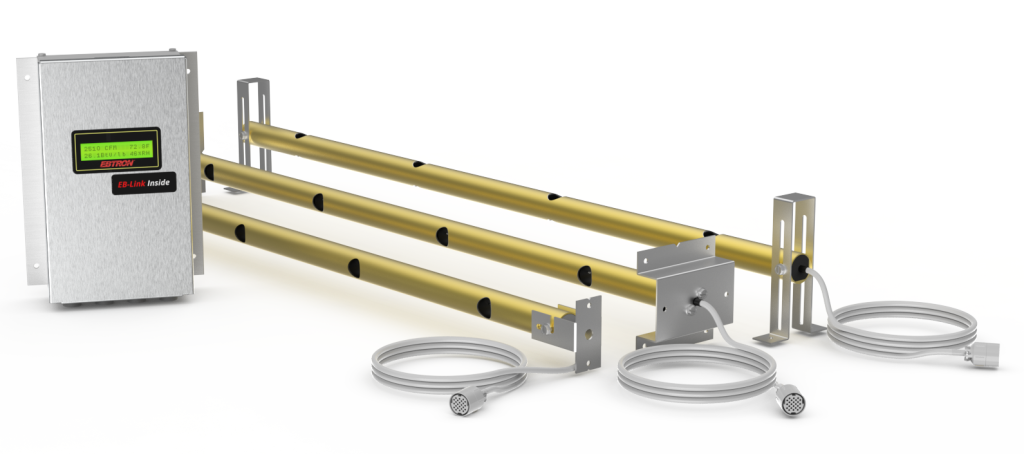

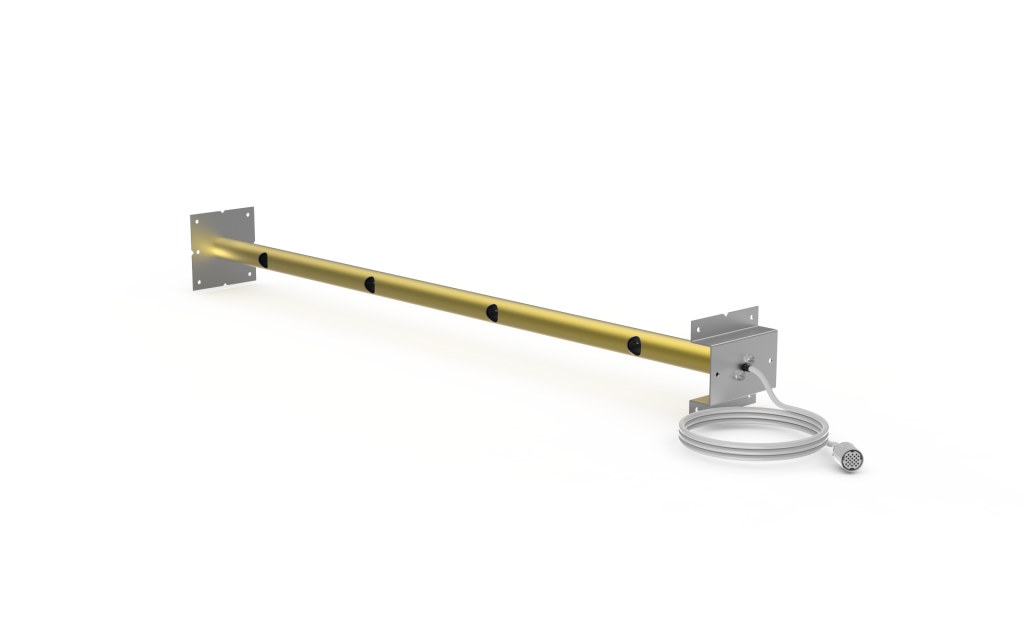

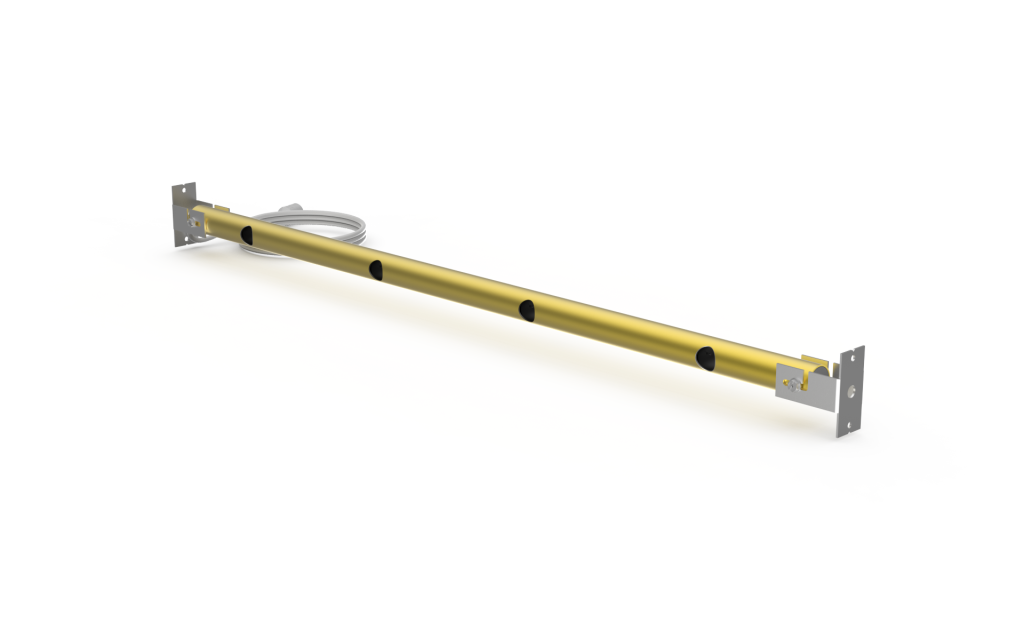

Insertion: 6 to 191 in. [152.4 to 4851 mm]Stand-off: 6 to 190 in. [152.4 to 4826 mm]Internal: 8 to 194 in. [203.2 to 4928 mm]

Note: The /H option is only available on probes >18 in.[457.2 mm]

Probe to Transmitter Cables
Type: FEP jacket, plenum rated CMP/CL2P, UL/cUL listed, -67 to 302 ⁰F [-55 to 150 ⁰C], UV tolerant

Standard Lengths: 10, 15, 20, 25, 30, 40, and 50 ft. [3.1, 4.6, 6.1, 7.6, 9.1, 12.2, and 15.2 m]

Connecting Plug: 13/16” [20.63 mm] nominal diameter with gold-plated connector pins


Power Requirement:
24 VAC (22.8 to 26.4 under load) @20V-A max

Connector Receptacle Pins and PCB Connections: Gold-plated receptacle pins, PCB interconnects, PCB edge fingers, and test points

User Interface: 2 line x16-character backlit LCD display and 4 button interface

B.A.S. Connectivity Options
All Transmitter: Three field selectable (0-5/0-10 VDC or 4-20mA), scalable and isolated analog output signals (AO1=airflow, AO2=temperature or alarm, AO3=%RH, enthalpy or dew point). When / H option is provided.

GTA116e Transmitter: No additional connectivity to B.A.S.

GTC116e Transmitter: One additional field selectable (BACnet MS/TP or Modbus RTU) and isolated RS-485 network connection -Individual sensor node airflow rates and temperatures are available via the network.

GTM116e Transmitter: One additional isolated Ethernet
(simultaneously supported BACnet Ethernet or BACnet IP, Modbus TCP, and TCP/IP) network connection – Individual sensor node airflow rates and temperatures are available via the network.

GTF116e Transmitter: One additional isolated Lonworks Free Topology network connection.

GTU116e Transmitter: One additional USB connection for thumb drive data-logging of sensor node airflow rates and temperatures.

Airflow Alarm
Type: Low and/or high user-defined setpoint alarm
Tolerance: User-defined % of setpoint
Delay: User defined
Zero Disable: The alarm can be disabled when the airflow rate falls below the low limit cutoff value (unoccupied periods)
Reset Method: Manual or automatic
Visual Indication: Yes, LCD display
Analog Signal Indication: Yes, on AO2 assignment

System Status Alarm
Type: Sensor diagnostic system trouble indication
Visual Indication: Yes, LCD display
Analog Signal Indication: Yes, on AO2 assignment

EB-Link Bluetooth Interface for Android® and iPhone®:
Display real-time airflow, velocity-weighted temperature, humidity, enthalpy, dew point, individual sensor node airflow/temperature data, settings, and diagnostics.

¹ Installed airflow accuracy allows for additional uncertainty that results from averaging a finite number of sensors in a contorted velocity profile created from up and downstream disturbances. The specified installed accuracy is based on the P+ sensor density rules for installations that meet or exceed EBTRON minimum placement requirements. P+ sensor density rules may not be available in certain duct sizes due to sensor placement limitations.
