Advantage IV

Gold Series
GTx116e-P+
Airflow Measurement with Temperature & Alarm Capability

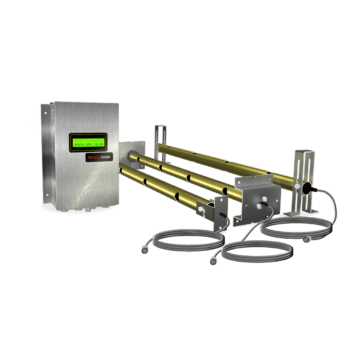

A4 GTX116 System
BTL_Logo
C UL US Listed
CE_Logo

Advantage IV

Gold Series
GTx116e-P+
Airflow and Temperature Measurement Device with Integral Relative Humidity Sensor (with /H option)

The GTx116‐P+ is EBTRON’s top‐of‐the‐line solution for accurate and repeatable measurement in ducts and plenums. Ideal for outdoor air delivery monitoring and airflow tracking applications. Temperature and alarm capability plus unsurpassed product features and connectivity options make this the best choice for today’s high performance buildings. Bluetooth® low energy technology interface.

  • Thermal Dispersion Airflow Technology
  • Supports up to 16 Sensor Nodes
  • NIST-traceable Calibration
  • %-of-reading Airflow Accuracy
  • Airflow and Status Alarms
  • Temperature Output Capability
  • Combination Analog/Network Models
  • Three Mounting Styles
  • Remote Transmitter with LCD Display
  • 3-year Warranty
GTx116e-P+ Overview PDF

Typical Applications



  • Outdoor Air Delivery  Monitoring and Control
  • Differential Airflow Tracking for Building Pressurization Control
  • Airside Economizer Enthalpy Switchover Detection
  • Supply Air Humidity Monitoring and Control
  • DOAS Dew Point Monitoring

Benefits

  • Comply with ASHRAE Standards and Building Codes
  • Satisfy LEED Prerequisites and Credits
  • Provide Acceptable IAQ
  • Save Energy
  • Reduce Liability
  • Improve Economizer Performance

Product Highlights

  • Best Installed Accuracy
  • Low Airflow Capability
  • Volumetric or Mass Airflow Measurement
  • Long-term Stability
  • “Plug and Play” Operation
  • Intuitive User Interface
  • Waterproof Sensor Assembly
  • FEP Plenum Rated Cables

General

Probe and Sensor Node Configurations (max.)

2 probes x 8 sensor nodes/probe
4 probes x 4 sensor nodes/probe

Installed Airflow Accuracy¹

Ducts/Plenum: ±3% of reading
Non-ducted OA Intakes: better than or equal to ±5% of reading

PC Sensor Density

Refer to the P+ sensor density table.

Sensor Node Averaging Method

Airflow: Independent, arithmetic average
Temperature: Independent, velocity weighted average

Listings and Compliance

UL: : UL-873 and CSA C22.2 No. 24
CE: Yes
BACnet International: BTL Listed (GTC116e and GTM116e
transmitters)
FCC: This device complies with Part 15 of the FCC rules
RoHS: This device is RoHS2 compliant

Environmental Limits

Temperature:
Probes: -20 to 160 ºF [-28.9 to 71.1 ºC]
Transmitter: -20 to 120 ºF [-28.9 to 48.9 ºC]
Humidity: (non-condensing)
Probes: 0 to 100%
Transmitter: 5 to 95%

Individual Sensing Nodes

Sensing Node Sensors

Self-heated sensor: Precision, hermetically sealed, bead-in-glass thermistor probe
Temperature sensor: Precision, hermetically sealed, bead-in-glass thermistor probe

Sensing Node Housing

Material: Glass-filled Polypropylene (Kynar® with /SS option)
Sensor Potting Materials: Waterproof marine epoxy

Sensing Node Internal Wiring

Type: Kynar® coated copper

Airflow Measurement

Accuracy: ±2% of reading to NIST-traceable airflow standards (includes transmitter uncertainty)
Calibrated Range: 0 to 5,000 fpm [25.4 m/s]
Calibration Points: 16

Temperature Measurement

Accuracy: ±0.15⁰F [0.08 ⁰C] to NIST-traceable temperature standards (includes transmitter uncertainty)
Calibrated Range: -20 to 160 ⁰F [-28.9 to 71.1 ⁰C]
Calibrated Points: 3

Sensor Probe Assembly

Tube

Material: Gold anodized 6063 aluminum (316 stainless steel with /SS option)

Mounting Brackets

Material: 304 stainless steel

Mounting Options & Size Limit¹

Insertion : 6 to 191 in. [152.4 to 4851 mm]
Stand-off: 6 to 190 in. [152.4 to 4826 mm]
Internal: 8 to 194 in. [203.2 to 4928 mm]
Note: The /H option is only available on probes >18 in.[457.2 mm]

Probe to Transmitter Cables

Type: FEP jacket, plenum rated CMP/CL2P, UL/cUL listed, -67 to 302 ⁰F [-55 to 150 ⁰C], UV tolerant
Standard Lengths: 10, 15, 20, 25, 30, 40 and 50 ft. [3.1, 4.6, 6.1, 7.6, 9.1, 12.2, and 15.2 m]
Connecting Plug: 13/16” [20.63 mm] nominal diameter with gold-plated connector pins



Transmitter

Power Requirement:

24 VAC (22.8 to 26.4 under load) @20V-A max.

Connector Receptacle Pins and PCB Connections:

Gold-plated receptacle pins, PCB interconnects, PCB edge fingers, and test points

User Interface:

2 line x16-character backlit LCD display and 4 button interface

B.A.S. Connectivity Options

All Transmitter: Three field selectable (0-5/0-10 VDC or 4-20mA), scalable and isolated analog output signals (AO1=airflow, AO2=temperature or alarm, AO3=%RH, enthalpy or dew point). when / H option is provided
GTA116e Transmitter: No additional connectivity to B.A.S. GTC116e Transmitter: One additional field selectable (BACnet MS/TP or Modbus RTU) and isolated RS-485 network connection -Individual sensor node airflow rates and temperatures are available via the network
GTC116e Transmitter: One additional field selectable (BACnet MS/TP or Modbus RTU) and isolated RS-485 network connection -Individual sensor node airflow rates and temperatures are available via the network
GTM116e Transmitter: One additional isolated Ethernet
(simultaneously supported BACnet Ethernet or BACnet IP, Modbus TCP and TCP/IP) network connection – Individual sensor node airflow rates and temperatures are available via the network
GTF116e Transmitter: One additional isolated Lonworks Free Topology network connection
GTU116e Transmitter: One additional USB connection for thumb drive data-logging of sensor node airflow rates and temperatures

Airflow Alarm

Type: Low and/or high user defined setpoint alarm
Tolerance: User defined % of setpoint
Delay: User defined
Zero Disable: Alarm can be disabled when the airflow rate falls below the low limit cutoff value (unoccupied periods)
Reset Method: Manual or automatic
Visual Indication: Yes, LCD display
Analog Signal Indication: Yes, on AO2 assignment

System Status Alarm

Type: Sensor diagnostic system trouble indication
Visual Indication: Yes, LCD display
Analog Signal Indication: Yes, on AO2 assignment

EB-Link Bluetooth Interface for Android® and iPhone®:

Display real-time airflow, velocity-weighted temperature, humidity, enthalpy, dew point, individual sensor node airflow/temperature data, settings and diagnostics.
¹ Installed airflow accuracy allows for additional uncertainty that results from averaging a finite number of sensors in a contorted velocity profile created from up and downstream disturbances. The specified installed accuracy is based on the P+ sensor density rules for installations that meet or exceed EBTRON minimum placement requirements. P+ sensor density rules may not be available in certain duct sizes due to sensor placement limitations.
