Thermal Dispersion Airflow, Temperature, Humidity Measurements

Large ducts & intakes

Thermal Dispersion Airflow and Temperature Measurement Solutions with an Optional Integral Humidity Sensor

EBTRON’s high sensor density multipoint airflow measurement devices provide accurate and repeatable measurements in large ducts and intakes. This series is ideal for outdoor air delivery monitoring and airflow tracking applications. Airflow, temperature, relative humidity, alarm capability, unsurpassed product features, and connectivity options make these the best choice for today’s high-performance buildings.

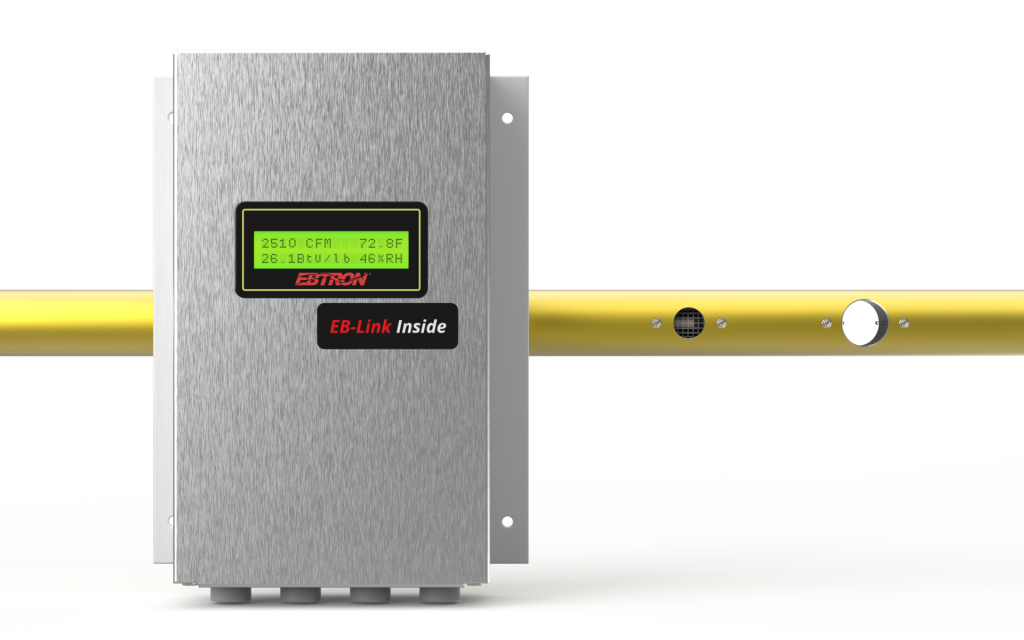

GTx116e-P

HTx116-P

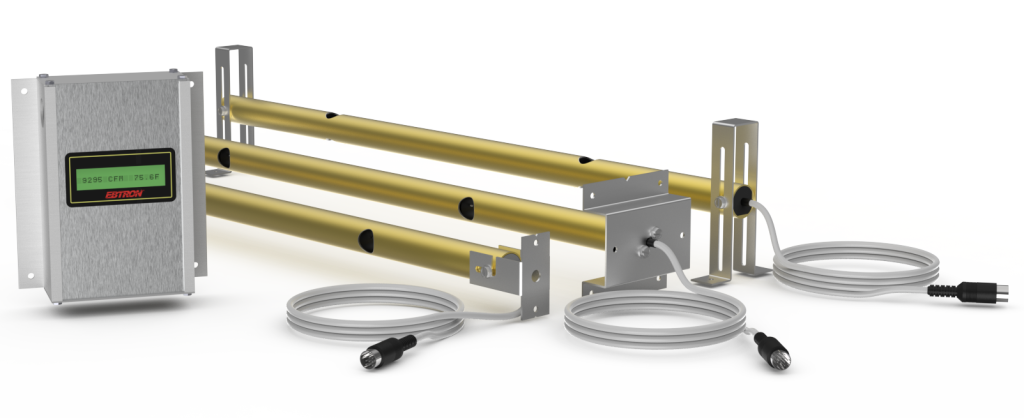

HTx104-P

Sensor Nodes

up to 16

up to 16
(max 4 per)

up to 4

Measurement Output

/H Option*

US Patent Nos.: 12,066,199; 12,066,205
CA Patent Nos.: 3,069,531; 3,169,641
EP Patent No.: 4081741B1
MX Patent Nos.: 417881; 428776

Airflow
Temperature
Relative Humidity*
Enthalpy*
Dew Point*
*Available on /H option only

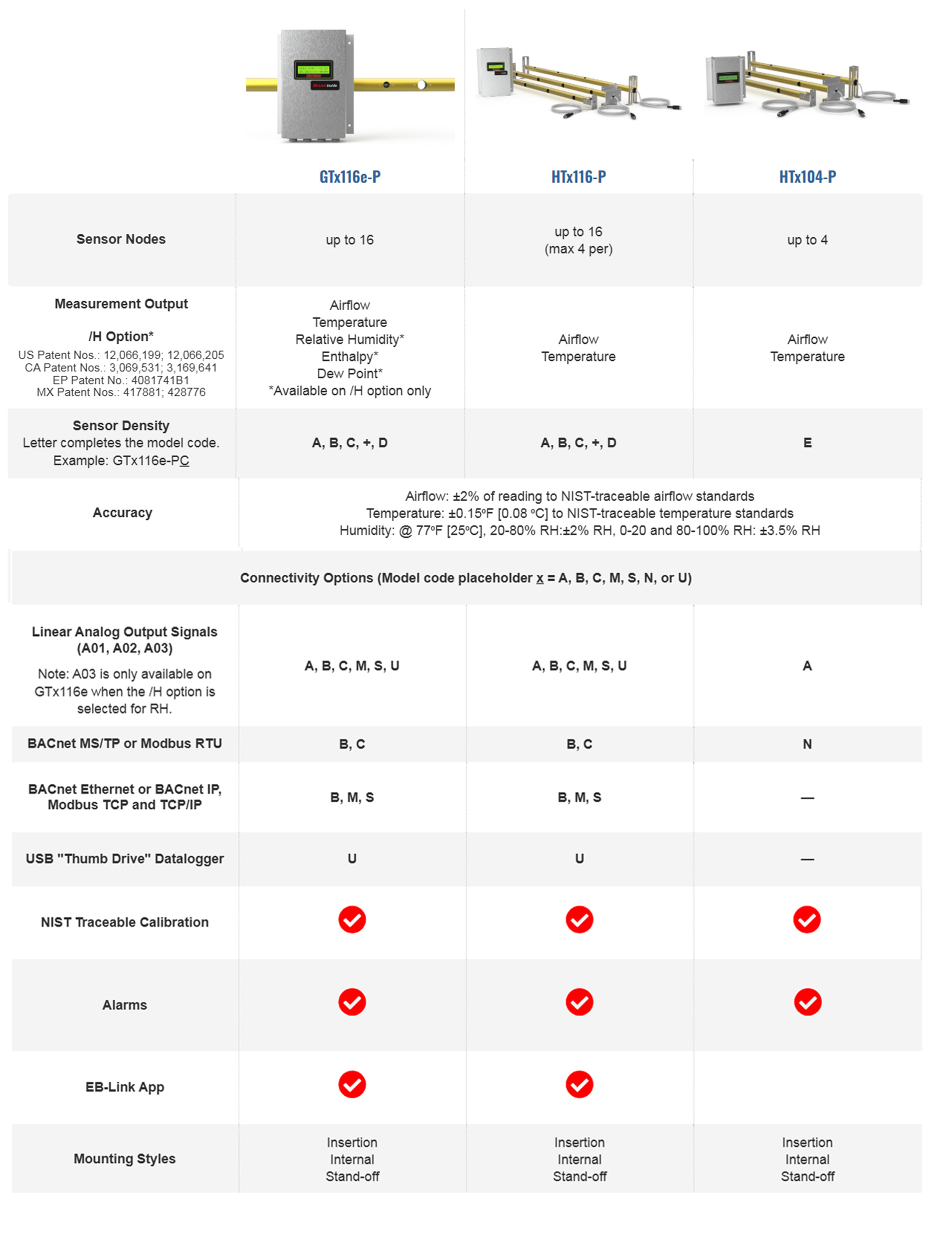

Airflow
Temperature

Sensor Density

Letter completes the model code. Example: GTx116e-PC

A, B, C, +, D

E

Accuracy

Airflow: ±2% of reading to NIST-traceable airflow standards
Temperature: ±0.15⁰F [0.08 ⁰C] to NIST-traceable temperature standards
Humidity: @ 77⁰F [25⁰C], 20-80% RH:±2% RH, 0-20 and 80-100% RH: ±3.5% RH

Connectivity Options (Model code placeholder x = A, B, C, M, S, N, or U)

Linear Analog Output Signals (A01, A02, A03)

Note: A03 is only available on GTx116e when the /H option is selected for RH.

A, B, C, M, S, U

A

BACnet MS/TP or Modbus RTU

B, C

N

BACnet Ethernet or BACnet IP, Modbus TCP and TCP/IP

B, M, S

—

USB "Thumb Drive" Datalogger

U

—

NIST Traceable Calibration

Alarms

EB-Link App

Mounting Styles

Insertion
Internal
Stand-off

Technical Data

Datasheet

Download

Datasheet

Download

Datasheet

Download

O&M Manual

Manual

Download

Manual

Download

Manual

Download

* Airflow and pressure measurements require reference measurements specific to the installation. The Field Adjust Wizard (FAW) can assist with setup for both.

Large ducts & intakes

Thermal Dispersion Airflow and Temperature Measurement Solutions with an Optional Integral Humidity Sensor

Sensor Nodes

up to 16

up to 16 (max 4 per)

up to 4

Measurement Output /H Option*

US Patent Nos.: 12,066,199; 12,066,205 CA Patent Nos.: 3,069,531; 3,169,641 EP Patent No.: 4081741B1 MX Patent Nos.: 417881; 428776

AirflowTemperature Relative Humidity* Enthalpy* Dew Point* *Available on /H option only

Airflow Temperature

Airflow Temperature

Sensor Density

Letter completes the model code. Example: GTx116e-PC

A, B, C, +, D

A, B, C, +, D

E

Accuracy

Airflow: ±2% of reading to NIST-traceable airflow standards Temperature: ±0.15⁰F [0.08 ⁰C] to NIST-traceable temperature standards Humidity: @ 77⁰F [25⁰C], 20-80% RH:±2% RH, 0-20 and 80-100% RH: ±3.5% RH

Connectivity Options (Model code placeholder x = A, B, C, M, S, N, or U)

Linear Analog Output Signals (A01, A02, A03)

Note: A03 is only available on GTx116e when the /H option is selected for RH.

A, B, C, M, S, U

A, B, C, M, S, U

A

BACnet MS/TP or Modbus RTU

B, C

B, C

N

BACnet Ethernet or BACnet IP, Modbus TCP and TCP/IP

B, M, S

B, M, S

—

USB "Thumb Drive" Datalogger

U

U

—

NIST Traceable Calibration

Alarms

EB-Link App

Mounting Styles

Insertion Internal Stand-off

Insertion Internal Stand-off

Insertion Internal Stand-off

Technical Data

O&M Manual
